| After-sales Service: | 1 |
|---|---|
| Warranty: | 1 |
| Type: | Semi-Trailer |
| Load Capacity: | 50T |
| Certification: | ISO9001, CCC |
| Wheel Base: | 8000-9000mm |

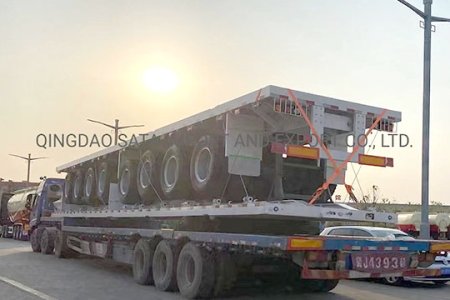

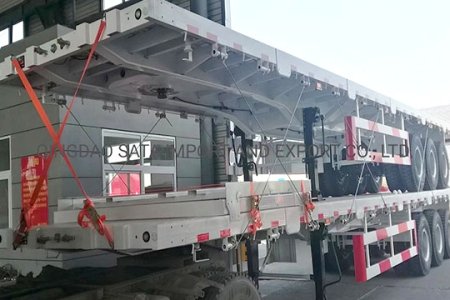

Container transportation flatbed semi trailer
Capacity:40-80ton
Axles number:2,3,4,5 axles or customized
Axles:FUWA,BPW,13ton-16ton capacity
Specificaiton:
| Size | 13000mm*3000mm*3100mm |
| Payload | 50-80ton |
| Tare weight | 10000kg |
| Axle | 3x13ton/14ton/16ton/20ton/Brand can be optional |
| Suspension | Mechanical suspension/air suspension/american type/germany type can be opentional |
| Tire | 11R22.5/12R22.5/11.00R20/12.00R20 brand can be opentional |
| Wheel rim | 8.25/9.0/8.0/8.5 |
| Kingpin | 2"/3.5" |
| I beam | Heavy duty and extra durability designed I beam; Optional for high tensile steel Q345; Welded by automatic submerged-Arc processes; Top flange 20mm,width140mm; Middle Flange 16mm height 500mm;bottom flange 20mm, width 140mm |
| Landing gear | Jost two speed 28ton |
| Floor | 4mm checkered plate |
| Twist lock | Optional |
| Spare tire carrier | 2 pcs |
| Tool box | 1 |
| Air wiring | Doule air line |
| Electricity wiring | 6 core wiring;24v or 12v ;LED lamp; |
| Brake system | Wabco relay valve;drum brake;t30/30 brake chamber |
| Paiting | Complete chassis sand blasting;electrophoresis coating;1 coat of anticorrosive prime; 2 coats of final paiting |
| Color | Optional |
| Accessories | One standard tool box,one spare tire carrier,one crank,one shaft headwrench, four side lights, two rear lights |
FAQ
1.Q: Are you a manufacturer or trading company?
A: Tading company, we have branch trailer factory,We are professional semi trailer supplier since 2005.
2.Q:How about your product quality?
A:BPW/FUWA axles, TRIANGLE/DOUBLE COIN/DOUBLE HAPPINESS tyres All our spare parts are from the original manufacturers, Word Top brand, the quality is 100% guaranteed. Warranty period 1-2year.
3.Q:I want to be your agent in my country , is that ok?
A:It's ok, If your quantity is big, we will consider. For the first time 20 units is ok.
4.Q:can you manufacture them according to my requestment and design?
A: No problem.
5.Q:can you offer spare part?
A:Yes, we can, we will gift some spare part in tool box, dear. If you wanna more, we can provide you at lower price.
