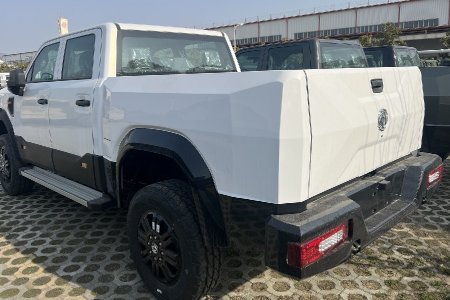

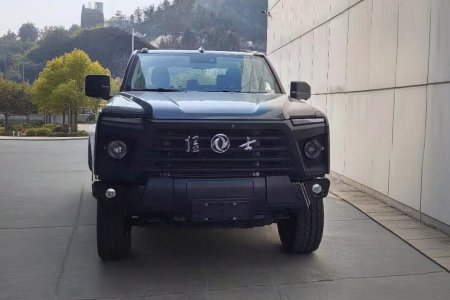

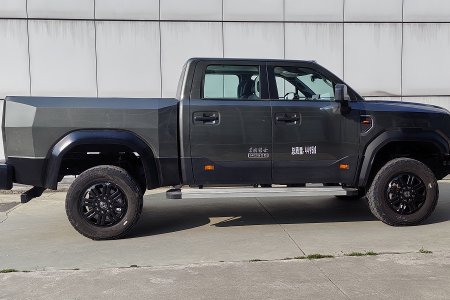

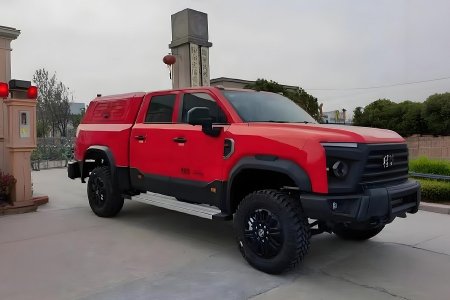

Dongfeng Multifunctional All Terrain Off-Road Vehicle

Drive type

All-wheel drive 4×4

Power unit location/arrangement

Front/longitudinal

Number of seats

3

Quality parameters

Gross vehicle mass (kg)

5900

Design loading mass (kg)

≥2000

Unladen mass (kg)

3750 (140L fuel tank standard with Type II chassis)

Road towing mass (kg)

≥2000

Dimensional parameters

Overall vehicle size (LxWxH) (mm) long rear overhang

5970x2160x2155 (with winch 6180x2160x2155)

Overall vehicle size (LxWxH) (mm) short rear overhangs

5850x2160x2155 (with winch 6060x2160x2155)

Load length (mm) long rear overhang/short rear overhang

2864/2744

Wheelbase(mm)

3700

Front and rear wheelbase(mm)

1831

Minimum ground clearance (full/no load) (mm)

340/370

Performance Parameters

Maximum speed (km/h)

≥140

Maximum gradient climb (cycle/traction %)

≥60/≥40

Wading depth(mm)

850

Vertical Overrun Height(mm)

≥400

Trench width (mm)

≥700

Motor

Model number

Supercharged Diesel Engine

National VI

Rated power (kW)

231 (2300rpm/min)

Maximum torque (Nm)

1050 (1300rpm/min)

Fuel consumption (low/mid/high) (L/100km)

23.73/16.68/13.26

Transmission

Model number

F6A75

Manoeuvring methods

Automatic 6-speed

Arrangement

Mounted vertically

Maximum transfer torque (Nm)

1050

Actuator

Model number

Aluminium housing with inter-axle centre differential, differential locks

Gear ratio

High gear: 1.0; Low gear: 2.72; Torsion ratio: 1:1.1

Manoeuvre type

4-speed manual electronically operated

Chassis

Front and rear internal high-pressure trapezoidal frame structure, box section longitudinal beam, with front and rear bumpers

Suspensions

Front suspension: double wishbone independent suspension with hydraulic dampers and lateral stabiliser bar

Rear suspension: double wishbone independent suspension with hydraulic dampers with thrust bars

Wheel

295/65R2OLT (10PR) 129/126N, radial tubeless tyres tyre speed class N, off-road pattern

Department of electricity

1. 24V negative lap;

2. Power supply battery: 2 x 12V-110Ah.

3、Lighting devices: headlights, turn signals, fog lamps, rear tail lamps, outline lamps, reading lamps

4. Warning devices: horn, reversing camera.

Options

1. AT road tread tyres,

2. 4kW/5kW dual generator,

3. 15/25kW high-voltage generator,

4. ESC electronic stability system,

5. FCW forward collision warning,

6. LDW lane departure warning,

7. PCW pedestrian collision warning,

8. Night vision  system,

9. Electric winch,

10. Cold start fuel heating system in cold areas,

11. Fabric seats (optional leather seats)
