RV also known as recreational vehicle or motorhome, can be parked on beaches,lakeshores, grasslands, mountain slopes, forests far away from the city. It also has a city lifestyle, such as cooking delicious meals, taking a hot bath, sleeping on soft and comfortable beds, watching TV, listening to music, playing DVDs, etc.

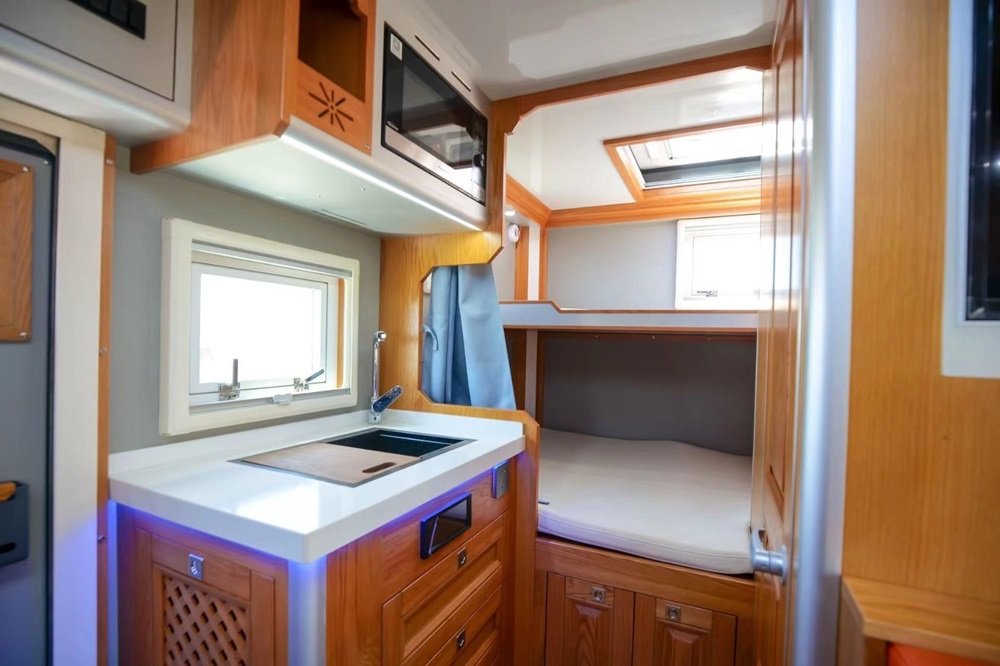

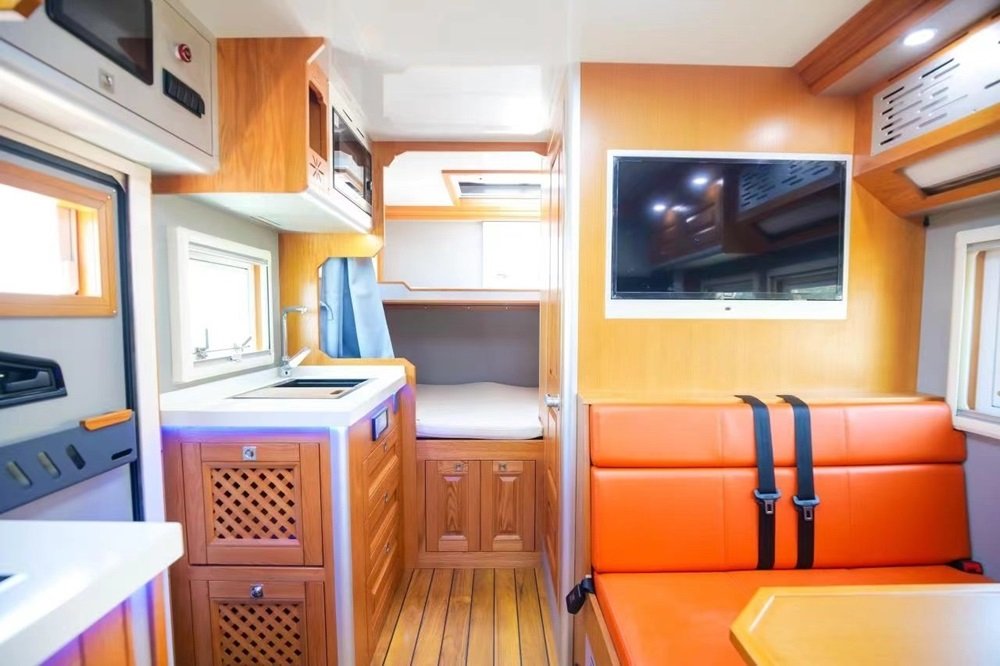

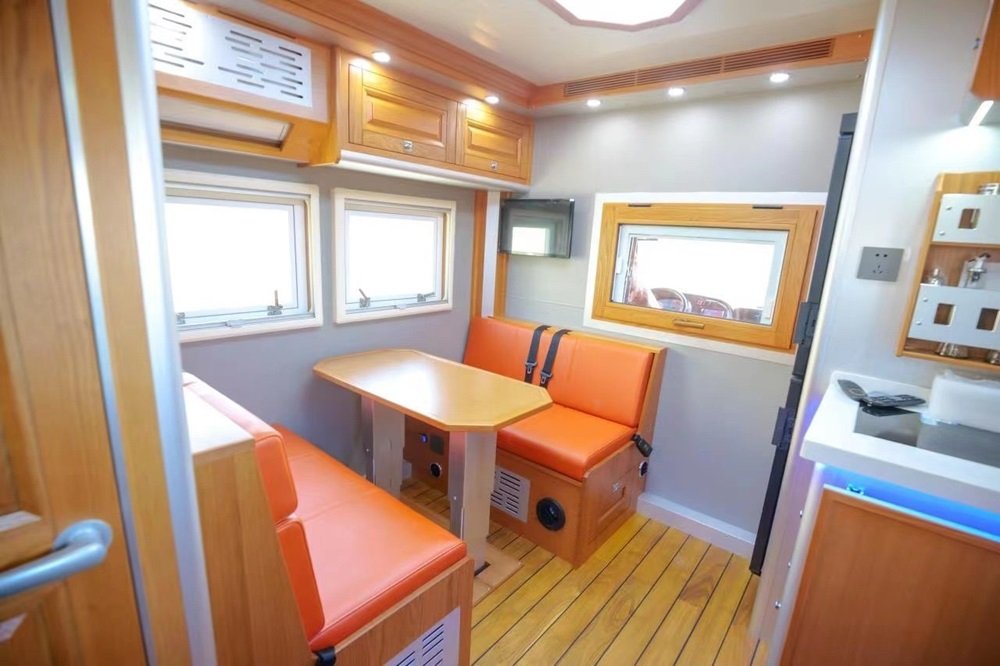

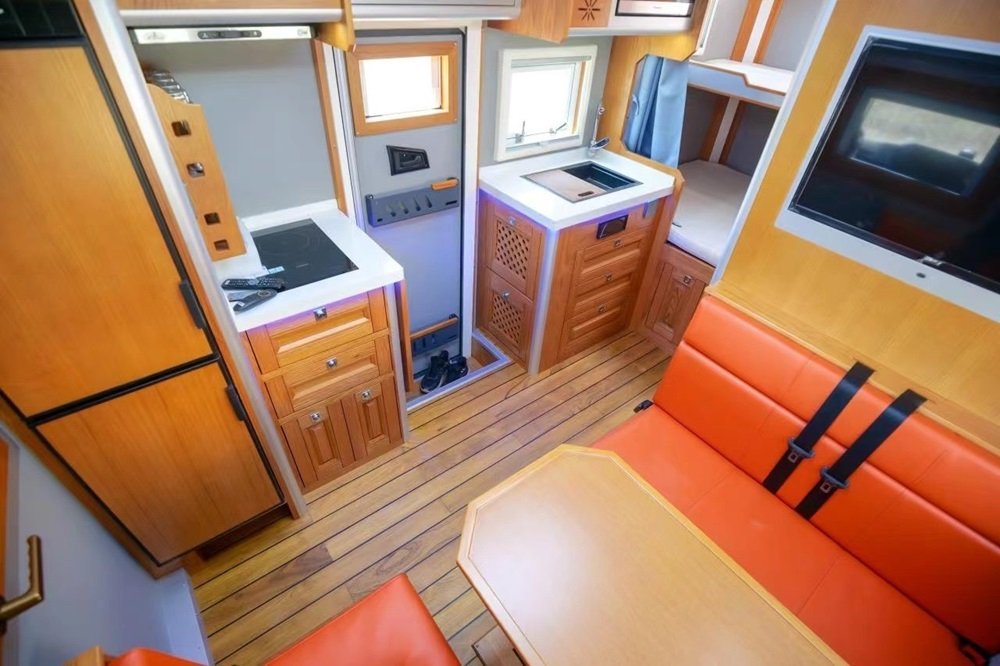

RV like scaled down houses, can be roughly divided into two types: Self-propelled and Trailer type.Self propelled RVs can be further divided into self-propelled A type, B type, and C type, while trailer type RVs can be divided into trailer A type, B type, C type, D type, and mobile villas. RVs generally have bedrooms, bathrooms with toilets, washbasins, bathtubs, living rooms, and open kitchens. There are large windows on both sides of the living room, making it convenient to enjoy the scenery on the road anytime and anywhere. The floor is covered with a light yellow carpet, and the inner walls of the milk yellow soft bags are decorated with natural wood,giving it a sense of home.The house is also equipped with A/C,LCD TV VCD,Refrigerators,
Microwaves,gas stoves, water heaters and other electrical appliances. The starting of electrical appliances relies entirely on the power provided by the AC generator, and in the case of an external power source, it is replaced by an external power source. At the same time, the vehicle is also equipped with many safety facilities, including LPG (liquefied petroleum gas) detectors, CO alarms, smoke alarms, emergency exits, fire extinguishers, seat belts, etc. It can be said that although it is small,it is well-equipped with all five organs.
Vehicle Technical Parameters | |||
Product Name | Motorhome | Model | HDT5090XLJJC6 |
Gross Vehicle Mass(Kg) | 9000 | Motorhome van size(m3) | 28 |
Rated loading capacity(Kg) | 1200 | Overall dimension(mm) | 5995x2550x3500 |
Kerb weight(Kg) | 8805 | Motorhome van size(mm) | 3680x2500x3450 |
Rated passenger(Person) | 3 | Total mass of trailer(Kg) | 4500 |
Approach/Departure angle(°) | 16/18 | Front/Rear Overhang(mm) | 1450/945 |
Axle loading capacity(Kg) | 3700/5300 | Max speed(Km/h) | 110 |
Note | The side protection is a skirt structure made of Q235 material, and the rear protection is made of Q235 material. The cross-sectional dimensions (width×height):80×100mm and the ground clearance is 350mm.The connection method is bolt connection. Equipped with sleeping gear,washing cabinet, refrigerator, hygiene facilities and other living facilities for travelers. The manufacturer/model of ABS system controller is WABCO brand 4460046300. This model can be optionally equipped with an ETC onboard device. Only adopt chassis with wheelbase of 3600mm. | ||
Chassis specification | |||
Chassis model | ZZ5186XXYK361GF1 | Chassis brand | Sinotruk,TX |
No of axles | 2 | Number of tires | 4 |
Wheelbase(mm) | 3600,4200,4500 | ||
Model of tires | 385/65R22.5/445/65R22.5 | ||
Number of steel plate springs | 3/-,-/- | ||
Front tread(mm) | 2099,2130 | Rear tread(mm) | 1969,1835 |
Fuel type | Diesel | Emission standard | Euro Ⅵ |
Engine model | MC07.27 202kw | Displacement(ml) | 6870 |
