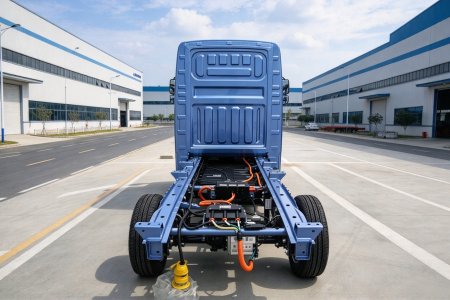

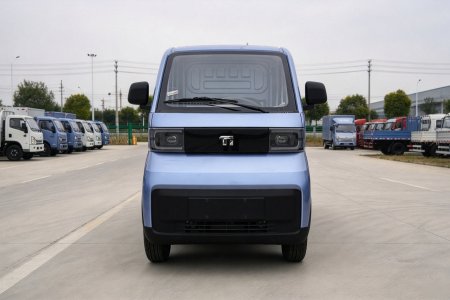

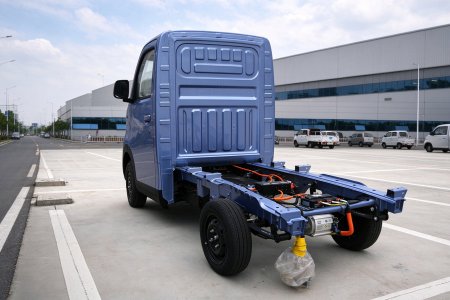

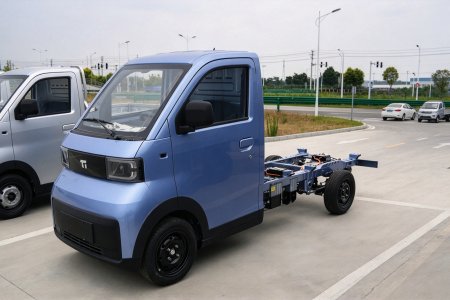

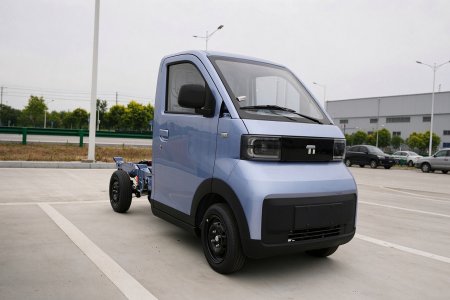

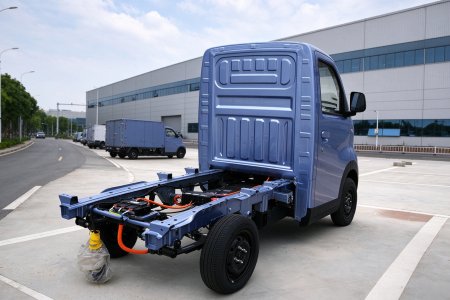

Small II electric chassis is built to support modifications for various low‑speed electric vehicle applications. It meets L6E and L7E WVTA requirements, enabling formal vehicle registration for EU markets. Multiple pre‑reserved interfaces ease refitting work, making it suitable for passenger tricycles, compact buggies and utility vehicles for road‑legal projects across Europe.
| 1 | Model | Flagship Edition |
| 2 | Parameter | |
| 3 | Whole vehicle size (mm) | 3170×1080×1700 |
| 4 | wheelbase (mm) | 2200 |
| 5 | track (front/rear)(mm) | 918/920 |
| 6 | Front overhang/Rear overhang(mm) | 465/505 |
| 7 | seating capacity | 1/2 |
| 8 | tire specification | 145/70 R12 |
| 9 | Minimum ground clearance (fully loaded)(mm) | ≥140 |
| 10 | Minimum turning radius(m) | ≤3.9 |
| 11 | Maximum speed of 1km1km (km/h) | ≥45 |
| 12 | rated load capacity(kg) | ≥400 |
| 13 | (km,30km/h,20ºC)range | ≥80 |
| 14 | Maximum slope(%) | ≥15 |
| 15 | Motor parameters | |
| 16 | Types of motors | PMSM |
| 17 | Battery parameters | |
| 18 | voltage platform | 60V |
| 19 | Battery type | Lithium Iron Phosphate |
| 20 | battery capacity(kWh) | 5.99 |
| 21 | charger power(kW) | 1.5kW optional |
| 22 | Battery preheating system during charging | Yes |
| 23 | Battery Thermal Management | natural air cooling |
| 24 | Braking, suspension, drive mode | |
| 25 | Brake system（F/R） | Front Disc and Rear Drum Brake |
| 26 | Suspension(F) | McPherson suspension |
| 27 | Drive mode | Rear drive |
| 28 | Safety | |
| 29 | All-metal unitized body | Yes |
| 30 | Three-point seat belt | Yes |
| 31 | Backup power supply | Yes |
| 32 | Connected and Intelligent Vehicles | |
| 33 | T-BOX | Optional |
| 34 | superAPP | Optional |
| 35 | Other | |
| 36 | Electric window | Yes |
| 37 | Electric power steering | Yes |
