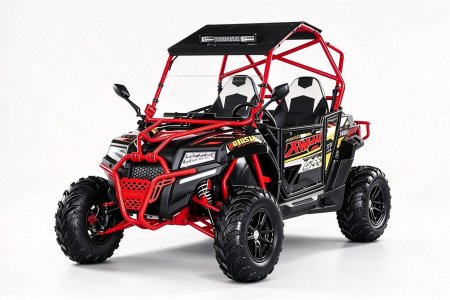

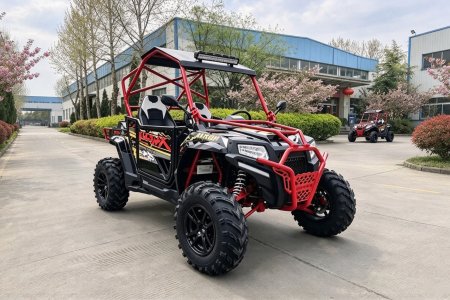

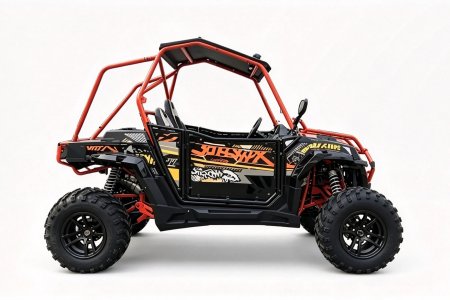

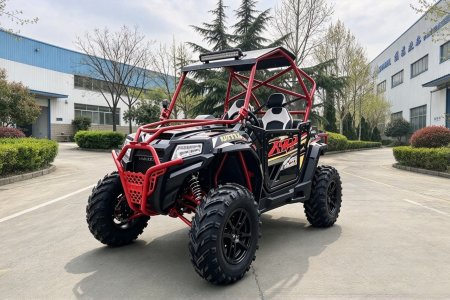

PREDATOR electric UTV battery range is approximately 100km. Silent, eco-friendly power with strong all-terrain capability. Used for daily tasks and outdoor adventures. Strong frame and smooth handling for tough terrain.
| MODEL | PDEV PREDATOR |
| MAX SPEED | 75KM/H |
| DRY WEIGHT | 410KG |
| GROSS WEIGHT | 510KG |
| RANGE | 100KM |
| ENGINE | |
| POWER TYPE(KW) | 72V 5kw DC PM Motor |
| CONTROLLER | 72V 300A Programmable Multi-Mode Controller |
| MAX POWER/RPM | 7.6kw/(7000r/min) |
| ON-BOARD CHARGER | 100-240V AC input; 72V/17A DC output CAN2.0 |
| BATTERY | Lithium Iron Phosphate 76.8V 100Ah |
| PROTECTION CLASS OFBATTERY PACK | IP67 |
| CONTROLLER COMMUNICATION | CAN2.0 |
| STARTING TYPE | Electric start |
| GEAR SHIFT /ORDER | Manually/ F-N-R |
| DIMENSIONS | |
| LENGTH x WIDTH x HEIGHT | 2700x1450x1750mm |
| WHEELBASE | 1980mm |
| FRONT/REAR TRACK | 1250/1150mm |
| GROUND CLEARANCE | 300mm |
| CHASSIS | |
| DRIVE SYSTEM | Shaft-Drive |
| FRONT/ REAR SUSPENSION | Double A-arm suspension/ Fang power 4-Link® bar Rear Suspension |
| FRONT TIRES, REAR TIRES | 25x8-12 , 25x10-12 |
| RIM | Front: 12x6.0 Rear: 12x8 cast aluminum |
| OTHER FEATURES | |
| BATTERY CAPACITY | 72V100Ah |
| PACKAGE SIZE(MM) | 2290×1400×815mm |
| LOADING QUANTITY(PCS) | 20FT: 8PCS, 40HQ: 24PCS |
