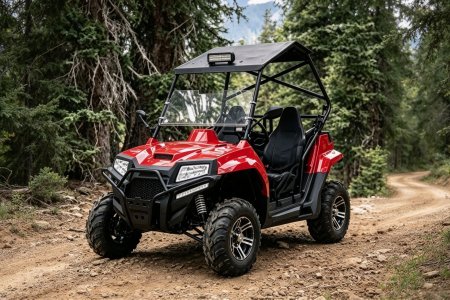

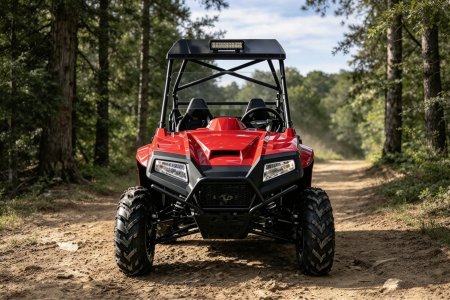

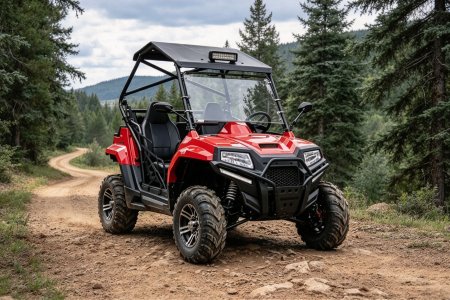

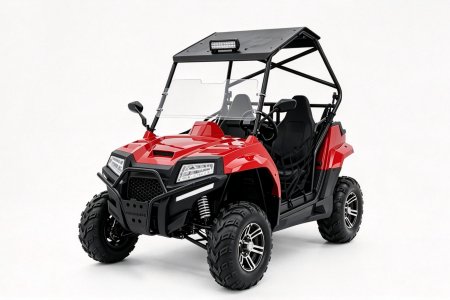

PDX200 TIGER is a compact 2‑seater four‑wheel UTV. The 200cc displacement offers steady power output for daily and leisure rides. Tough frame and adaptive suspension handle rough ground easily. Great balance of utility and fun, well‑suited for farm chores and recreational trips.
| MODEL | PDX200 TIGER |
| MAX SPEED | 55KM/H |
| DRY WEIGHT | 290KG |
| GROSS WEIGHT | 360KG |
| HORSEPOWER | 10.5HP |
| ENGINE | |
| ENGINE TYPE | Single-Cylinder , 4-Stroke Air/Oil-Cooled |
| DISPLACEMENT | 200CC |
| MAX POWER/RPM | 7.6kw/(7000r/min) |
| FUEL SUPPLY | Carburetor |
| TRANSMISSION | Cvt |
| STARTING TYPE | Electric Start |
| GEAR SHIFT /ORDER | Manually/ F-N-R |
| DIMENSIONS | |
| LENGTH x WIDTH x HEIGHT | 2450x1270x1670mm |
| WHEELBASE | 1860mm |
| FRONT/REAR TRACK | 1020/965mm |
| GROUND CLEARANCE | 152mm |
| CHASSIS | |
| DRIVE SYSTEM | Chain-Drive |
| FRONT/ REAR SUSPENSION | Double A-arm optional/ Dual Shock Swing Arm |
| FRONT TIRES, REAR TIRES | 21x7-10 , 22x10-10 |
| RIM | Front: 10x5.5 Rear: 10x8 cast aluminum |
| OTHER FEATURES | |
| FUEL CAPACITY(L/GAL) | 9.5L (2.1 Gallon) |
| BATTERY CAPACITY | 6MF9 12V9Ah |
| PACKAGE SIZE(MM) | 2290×1300×815mm |
| LOADING QUANTITY(PCS) | 20FT: 8PCS, 40GP: 18PCS, 40HQ: 26PCS |
