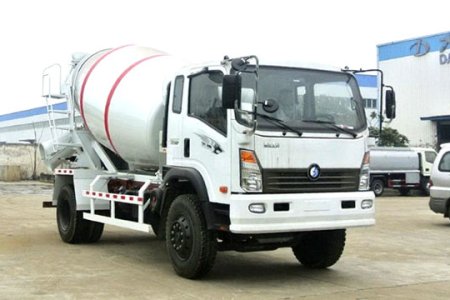

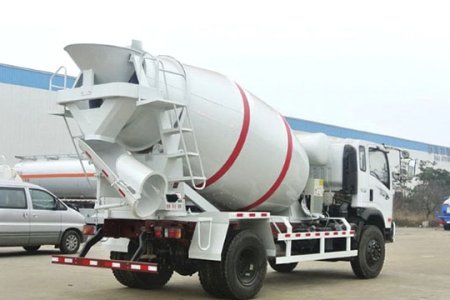

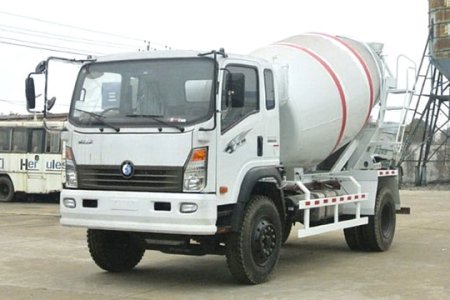

Brand New Sinotruk HOWO Light Concrete Mixer Tank Truck Factory Price
Tel/WeChat: +86 13573810060
WhatsApp: +86 13573810060
Email:qdsatatruck@sinosata.com
Product Description
The concrete mixer truck main purpose is to transport the concrete or mortar which has been mixed in the concrete mixer to the construction site.
The mixing tank of concrete mixer is adjustable speed and rotating mixing, Concrete are transported by mixer to ensure maximum segregation within the specified distance and time, No settlement of coarse aggregate and good workability.
Mixing trucks are mostly used in commercial mixing stations and large-scale projects. Elevated mixing stations (machines) must be equipped to allow tank trucks to pass freely and receive materials.
In addition, concrete mixer also has a piggyback purpose is to transport the same amount of water as the load concrete.
Chassis: ZZ1167G381CDR
Engine: MC05.18-40, 180hp,National 4 emission standard;
Cab: 2080mm, one and half;
Transmission:HW90510C,10-speed manual control gearbox;
With PTO;
Front axle:1090(drum brake);
Rear axle:9t(drum brake),speed radio: 6.33;
Suspension: 9/12+9;
Tires:9.00R20
Voltage: 24V
Dimension(L x W x H):7500X2400X3460 mm
Wheelbase:3800mm
Chassis standard configurations:
Air brake;
Spring braking;
Exhaust braking;
Clutch booster
With AC
Without ABS
Effective volume: 6m3
Italy TOP reduction box
Italy ARK pumps and motors
| Cab | 2080E |
| Engine | YC4130-33 130PS |
| GVW(kg) | 16000 |
| NW(kg) | 7735 |
| Truck Overall Size(mm) | 7300x2400x3300 |
| Volume(m3) | 6 |
| Gearbox | WLY653H |
| Axles(F/R) | 3.2/9.0(6.33) |
| Frame | 865/800X250X80X(8+5) |
| Susp.(F/R) | 11/12+9 |
| Tyre | 8.25R20 |
| Serv.Brake | Air |
