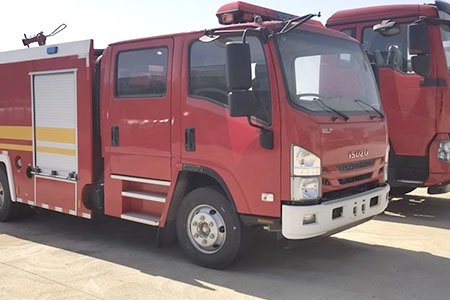

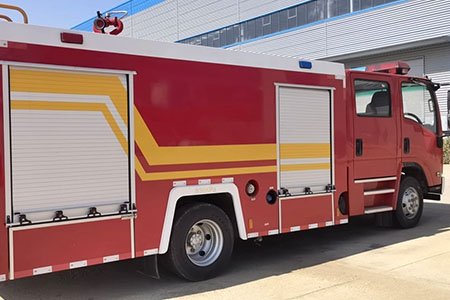

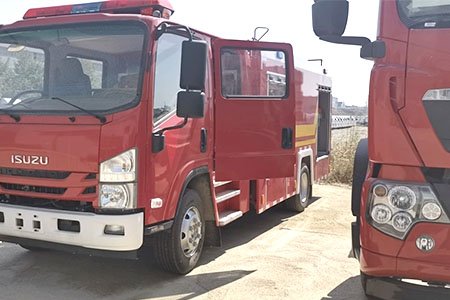

Brand New ISUZU Light Water Tank Fire Truck Factory Price
Tel/WeChat: +86 13573810060
WhatsApp: +86 13573810060
Email:qdsatatruck@sinosata.com
A water tank fire truck is equipped with a large capacity water storage tank, water gun, water cannon, etc. in addition to a
fire pump and equipment. Water and firefighters can be transported to the fire scene for independent firefighting.
It can also draw water directly from a water source for firefighting, or supply water to other fire trucks and firefighting spray
equipment.It can also be used for water supply in water scarce areas.Water transport trucks are suitable for extinguishing
general fires and are commonly used firefighting vehicles by public security fire brigades and specialized fire brigades in
enterprises and institutions.
Specification
| Chassis | Brand | ISUZU | |
| Chassis Model | QL1160AFRY | ||
| Drive Mode | 4X2 | ||
| Tire Type | 10.00-20 | ||
| Brake | Air brake | ||
| Engine | Model | 6HK1-TC | |
| Horsepower(HP) | 240 | ||
| Displacement(m3)/Power(kw) | 7790/177 | ||
| Emission | Euro IV | ||
| Main Parameter | Overall Dimension(mm)) | L*W*H | 8105*2480*3365 |
| Wheelbase | 4500 | ||
| Axle No. | 2 | ||
| Weight(kg) | Gross Weight | 16000 | |
| Payload Weight | 5500 | ||
| Kerb Weight | 9650 | ||
| Tank | Material | Water tank:Carbon steel Foam tank:Stainless steel | |
| Thickness | 4mm | ||
| Capacity | 8000L Water tank+2000L Foam tank | ||
| Leaf Spring No. | 9/7+7 | ||
| Approach/Departure Angle(°) | 26/14 | ||
| Front/Rear Track(mm) | 1960/1855 | ||
| Max.Speed(km/h) | 95 | ||
| Gear Box | 6 speed gearbox | ||
| Front/Rear Axle Load | 6.3T/13T | ||
| Fire Fighting Monitor | Model:PL24-48, Flow rate:48L/S/1Mpa Water Monitor Range:>=65m Pressure:1.0Mpa Horizontal rotation angle : 360 ° Pitch angle : -15 ° to +60 ° Mounting position: top compartment | ||
| Fire Fighting Pump | Pump Model:CB20.10/30.60, flow rate:40L/S, pressure:1.0Mpa Time of draining water:<=35s Full Power PTO Water depth : 7m Mounting: Rear | ||
| Cabin | Flat Roof Can with A/C Double Row | ||
